Automated testing with high throughput rate

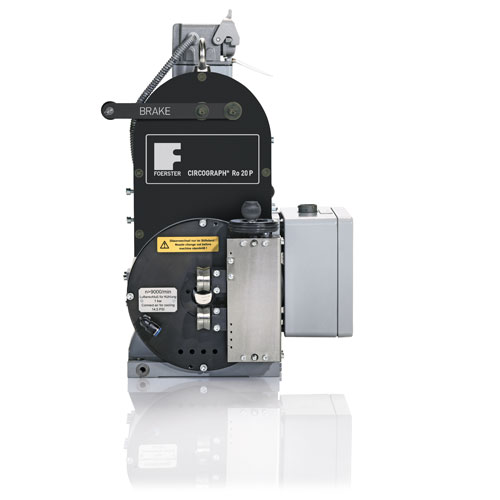

The CIRCOGRAPH sensor systems were originally developed by FOERSTER for testing semi-finished products such as wire or rods. However, the rotating heads are also excellently suited for testing a broad range of components, including piston pins. The rotating heads are therefore installed in systems such as the ROTO-PUSH. The rotating probes operate at intervals and are able to display even the smallest surface defect from a defect depth of approx. 30 µm in high resolution and full length. The probes rotate at high speed around the specimen and scan its surface without making contact in a helical manner. This allows a high throughput rate of up to 3 m/s with seamless testing.
The benefits to you at a glance
- Optimized detection sensitivity for surface-open, longitudinally-oriented defects
- Test material diameter to 65 mm
- Clearance compensation ensures constant signal evaluation

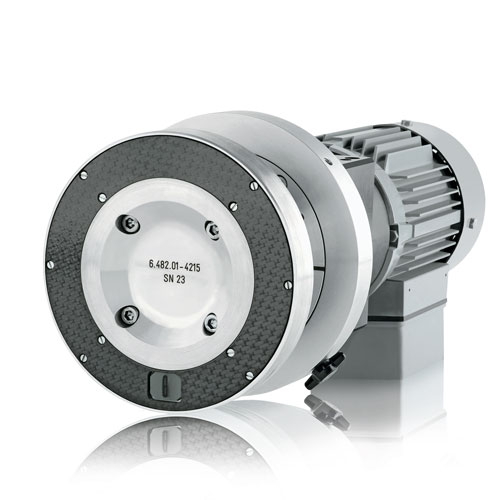

- CIRCOSCAN rotating discs are available for scanning flat material
Technical Data
| Diameter ranges: | 2–20 mm (Ro 20), 2-35 mm (Ro 35), 5–65 mm (Ro 65) |
| Maximum rotational speeds: | 18000 rpm (Ro 20), 9000 rpm (Ro 35), 6000 rpm (Ro 65) |
| Maximum feed rate: | 3 m/s (Ro 20, Ro 35), 2 m/s (Ro 65) |
